SPY10KiRT

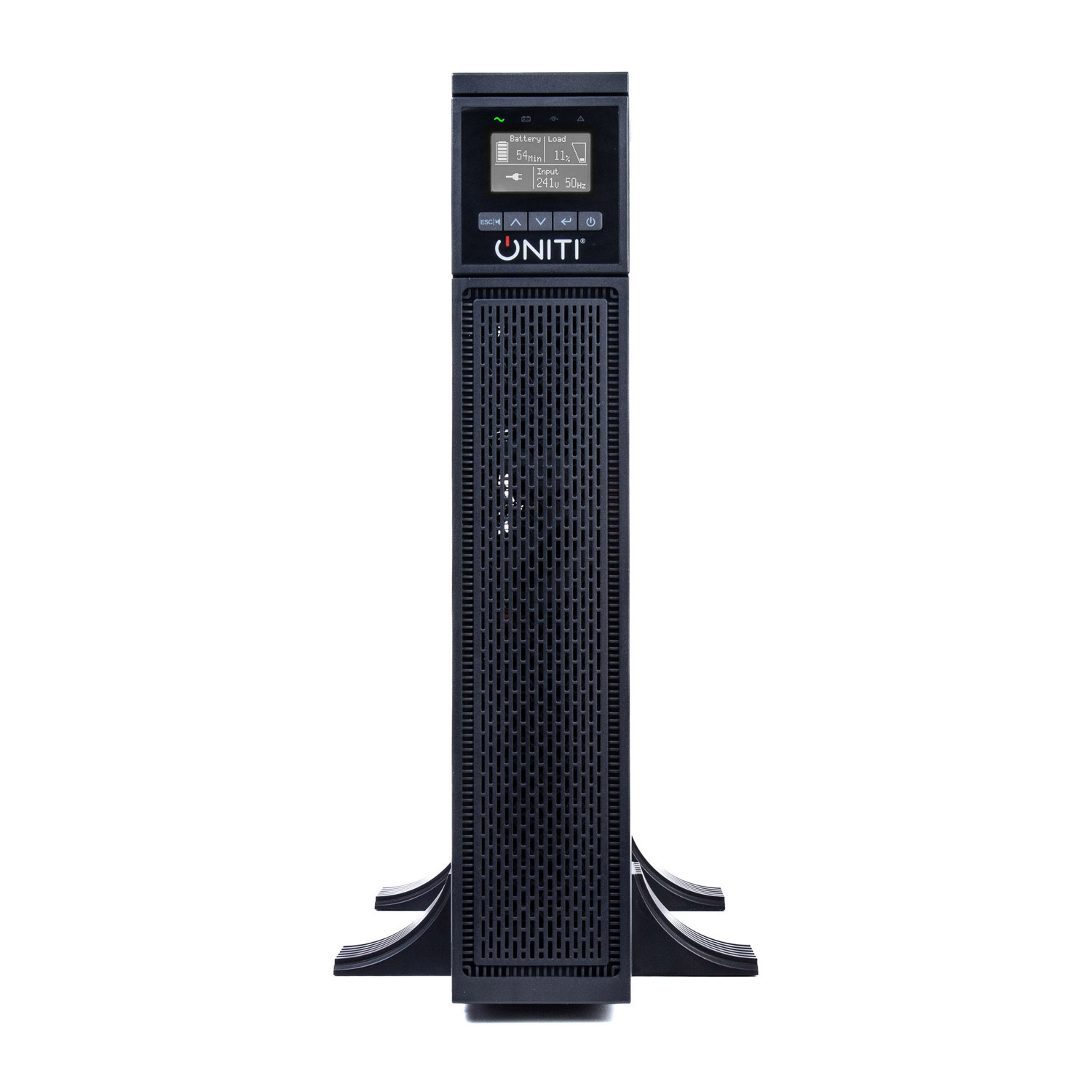

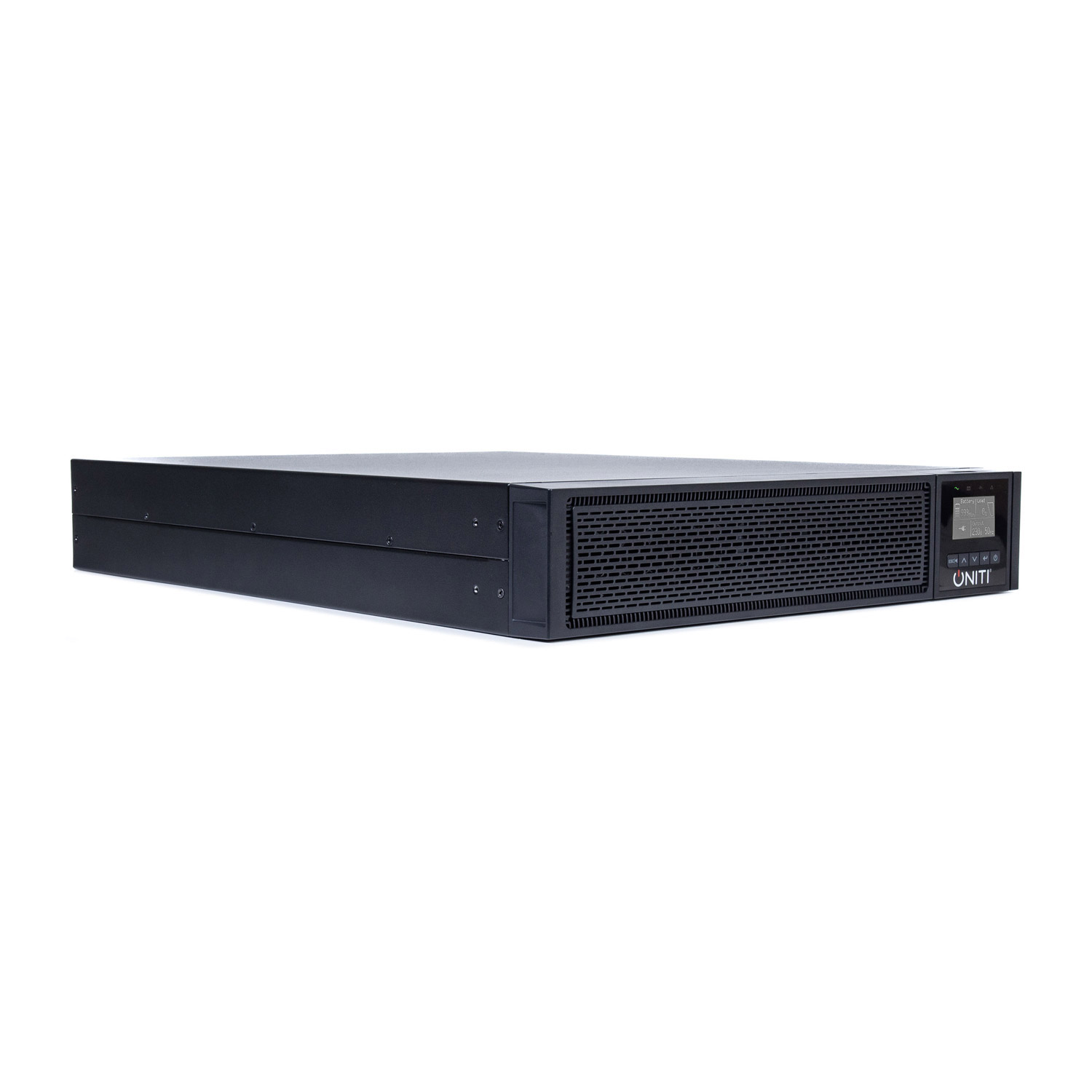

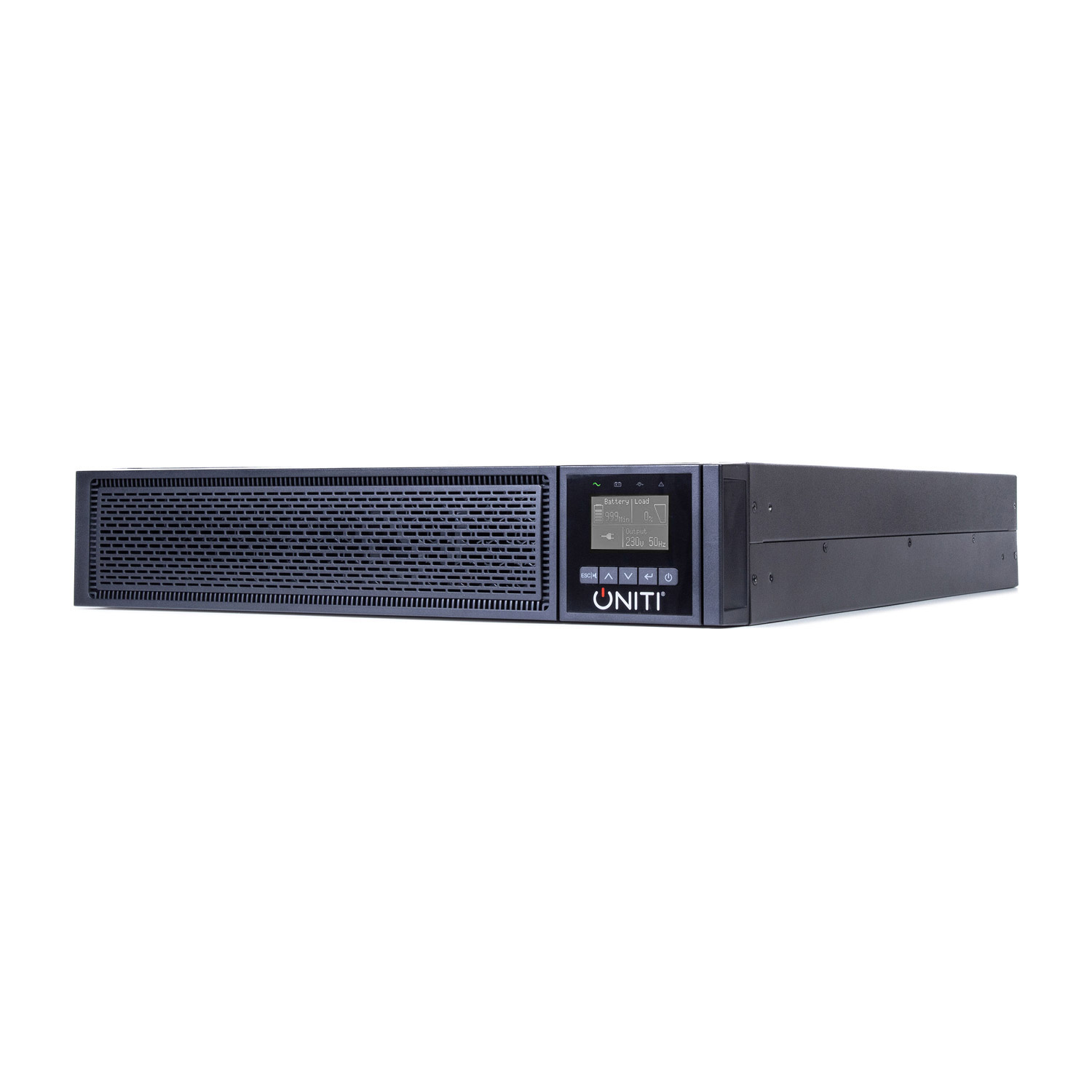

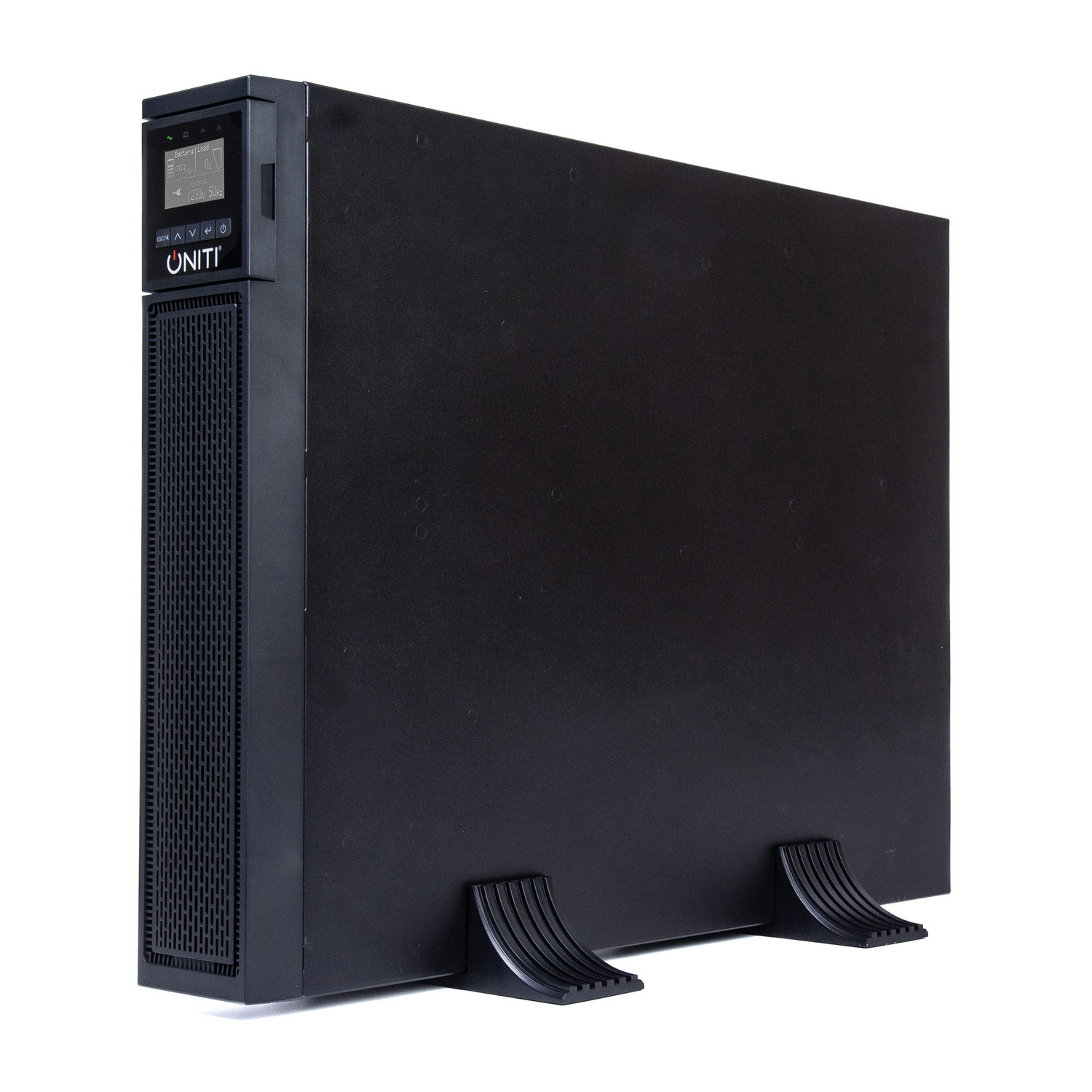

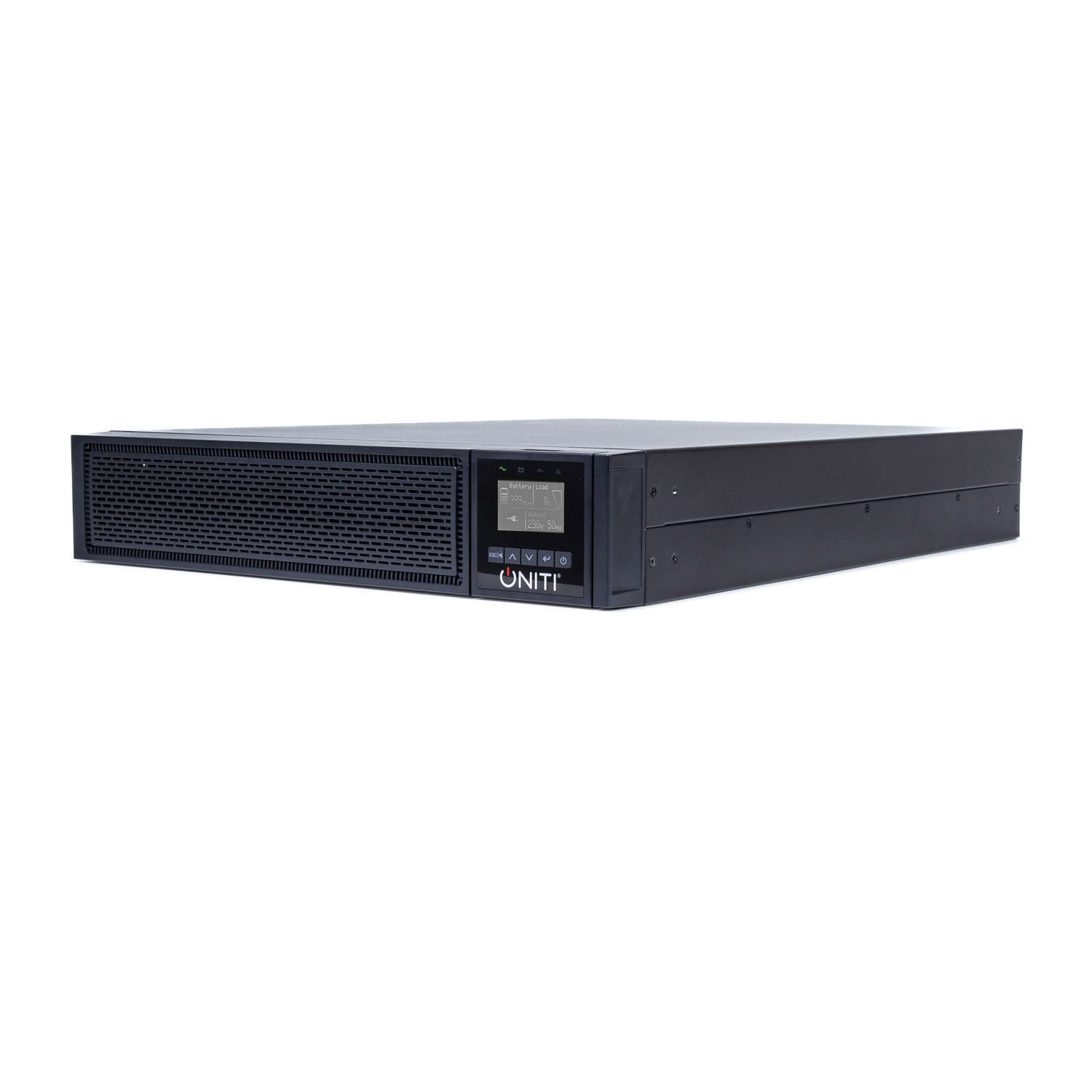

The Uniti Power Symphony 10kVA UPS provides market-leading power protection for mission-critical loads in server rooms, IT networks, medical applications, and industrial settings. Installable in either a rackmount or freestanding tower, Symphony is extremely versatile.
This policy details how Uniti Power Ltd addresses warranty claims for its products in the UK.
Basic technical support will be provided to ALL customers on any Uniti Power UPS unit, no matter of its age or location.
Symphony Range 1.5kVA to 10kVA
6-year parts and 2-year battery warranty on all Symphony UPS units registered via our online warranty registration page (*UK Only)
This ultra-reliable UPS features a high power density, true online double-conversion technology, connectivity that is future-proof, and seamless cloud integration. Symphony is an excellent option for IT and facility managers who are concerned about rising energy costs and searching for the power protection solutions of the next generation.
The Symphony series has a unity power factor (kVA = kW) and delivers more power than other comparable UPS systems while reducing energy and cooling costs. Using the user-friendly LCD panel or Uniti Power software, Symphony can monitor and measure energy consumption. Due to the optional network card and Uniti Power software suite, Symphony is compatible with the leading virtualization environments and cloud orchestration platforms.
Model
SPY10KiRT
EAN
0639114348847
Power rating
10000VA/10000W
Efficiency - Double coversion mode
95%
Efficiency - Eco mode
98%
Input voltage range
160-275V 100% load, 110-160V derating to 50% load linearly
Input rated frequency
50Hz/60Hz
Input frequency range
40Hz-70Hz (45Hz-55Hz 54Hz-66Hz @ load>60%)
Input PF
>0.995
Input THDI
<3% linear load, <5% non linear load
Input connection
L/N/PE hardware terminnal connection
Output rated voltage
220/230/240V
Output rated frequency
50Hz/60Hz
Output maximum PF
1
Output voltage accuracy
±1%
Output THDv
<1% linear load, <5% non linear load
Output transfer time
0ms (10ms @ ECO->Inverter)
Output crest ratio
Max 3:1
Output overload (line mode)
"100%
Output wiring/socket
L/N/PE hardware terminnal connection
Output load segment control
Optional
Battery voltage
240VDC
Extended battery option
EBM2409RT3U
Max external battery modules
6
Charging current
4A (0-12A adjustable)
CVCF working mode
Yes (derating to 60% load)
Parallel working mode
Optional (up to 3)
Display
Dot matrix LCD, rotatable manually
Language
10 Languages
USB
USB 2.0 with HID
RS232
Yes (DB9)
Dry in/out
1 programble dry in; 1 programble dry out
EPO
Yes
Inteligent slot
Yes (for long card)
Network card
Optional, NMC long card
Dry contactor card
Optional, AS400 Long Card
Ethernet port for IOT
RJ45
Monitor software
Winpower
Dimension (WxDxH) (mm)
438x573x86.2 (power module, 2U)
Gross weight (kg)
18.9
Net weight (kg)
15.5
Number of units per pallet
8
IP protection level
IP20
Operating temperature
0-50⁰C (power derating to 50% @40-50⁰C )
Relative Humidity
0-95%
Operating Altitude
0-3000m (the load derating 1 % every up 100m @1000-3000m)
Acoustic Noise
<50dB @ typical load with battery fully charge
Certification
CE,IEC/EN 62040
EMI conduction/radiation
C3
EBM cable
Yes (in EBM)
USB cable
Yes
RS232 cable
Optional
Rail kit
Optional
Tower feet
Yes
Rack ear
Yes
Manual
Yes
Warranty
6-year parts
Lead time
Usually in stock
Full Load
75% Load
50% Load
25% Load
SPY10KiRT
N/A
N/A
N/A
N/A
SPY10KiRT + EBM2409RT3U x1
3
6
10
25
SPY10KiRT + EBM2409RT3U x2
10
15
25
60
SPY10KiRT + EBM2409RT3U x3
16
25
40
100
SPY10KiRT + EBM2409RT3U x4
24
35
55
130
Rackmount Bypass Panel 230V 32A; Hardwire Input & Output; (2) IEC-320 C19 Output; (4) C13
Find out moreUniti Power IoT is perfect for businesses with multiple UPS systems spread across different locations, businesses that require remote monitoring and control, and those that want to leverage predictive maintenance to minimise downtime.
Get UPS management and monitoring on the go with the IoT app
System Protect Software (SPS) is a utility that communicates with the Network Management Card. It logs events, informs users of events, and protects the system to shut down gracefully. With SPS, it can save application data and documents before the system is shut down.
SPS has two major components: SPSService and SPSInterface. SPS Service runs in the background as a system service, and SPS Interface is a user interface application that allows the user to tailor the configuration parameters.
Model
SPY10KiRT
EAN
0639114348847
Power rating
10000VA/10000W
Efficiency - Double coversion mode
95%
Efficiency - Eco mode
98%
Input voltage range
160-275V 100% load, 110-160V derating to 50% load linearly
Input rated frequency
50Hz/60Hz
Input frequency range
40Hz-70Hz (45Hz-55Hz 54Hz-66Hz @ load>60%)
Input PF
>0.995
Input THDI
<3% linear load, <5% non linear load
Input connection
L/N/PE hardware terminnal connection
Output rated voltage
220/230/240V
Output rated frequency
50Hz/60Hz
Output maximum PF
1
Output voltage accuracy
±1%
Output THDv
<1% linear load, <5% non linear load
Output transfer time
0ms (10ms @ ECO->Inverter)
Output crest ratio
Max 3:1
Output overload (line mode)
"100%
Output wiring/socket
L/N/PE hardware terminnal connection
Output load segment control
Optional
Battery voltage
240VDC
Extended battery option
EBM2409RT3U
Max external battery modules
6
Charging current
4A (0-12A adjustable)
CVCF working mode
Yes (derating to 60% load)
Parallel working mode
Optional (up to 3)
Display
Dot matrix LCD, rotatable manually
Language
10 Languages
USB
USB 2.0 with HID
RS232
Yes (DB9)
Dry in/out
1 programble dry in; 1 programble dry out
EPO
Yes
Inteligent slot
Yes (for long card)
Network card
Optional, NMC long card
Dry contactor card
Optional, AS400 Long Card
Ethernet port for IOT
RJ45
Monitor software
Winpower
Dimension (WxDxH) (mm)
438x573x86.2 (power module, 2U)
Gross weight (kg)
18.9
Net weight (kg)
15.5
Number of units per pallet
8
IP protection level
IP20
Operating temperature
0-50⁰C (power derating to 50% @40-50⁰C )
Relative Humidity
0-95%
Operating Altitude
0-3000m (the load derating 1 % every up 100m @1000-3000m)
Acoustic Noise
<50dB @ typical load with battery fully charge
Certification
CE,IEC/EN 62040
EMI conduction/radiation
C3
EBM cable
Yes (in EBM)
USB cable
Yes
RS232 cable
Optional
Rail kit
Optional
Tower feet
Yes
Rack ear
Yes
Manual
Yes
Warranty
6-year parts
Lead time
Usually in stock
SPY10KiRT
Full Load
75% Load
50% Load
25% Load
N/A
N/A
N/A
N/A
SPY10KiRT + EBM2409RT3U x1
Full Load
75% Load
50% Load
25% Load
3
6
10
25
SPY10KiRT + EBM2409RT3U x2
Full Load
75% Load
50% Load
25% Load
10
15
25
60
SPY10KiRT + EBM2409RT3U x3
Full Load
75% Load
50% Load
25% Load
16
25
40
100
SPY10KiRT + EBM2409RT3U x4
Full Load
75% Load
50% Load
25% Load
24
35
55
130
